LOAD RANGER WIRELESS WHEEL PAD

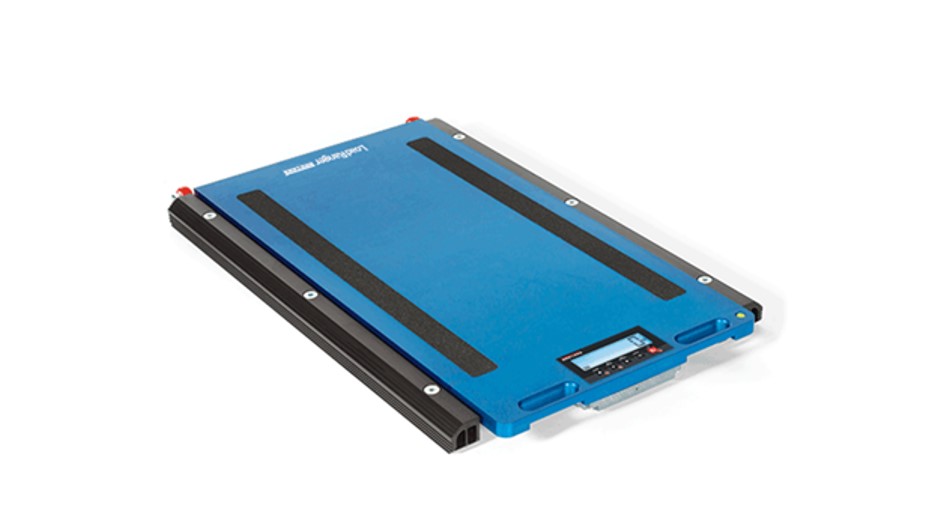

Load Ranger Wireless Wheel Pad Scale

Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.

  • Up to 6 individual pads (3 sets) per system, completely wireless
  • Up to 14 individual pads (7 sets) maximum per system, pairs must be joined with Y-cables and communicate wirelessly to the indicator
  • Industrial RF radio module to communicate with indicator
  • Integrated wheels and nonslip rubber under platform
  • Internal rechargeable battery with 40 hours of battery life
  • Built-in indicator on each scale with 1 in character display
  • IP67 rating
  • Cover plate protects built-in indicator

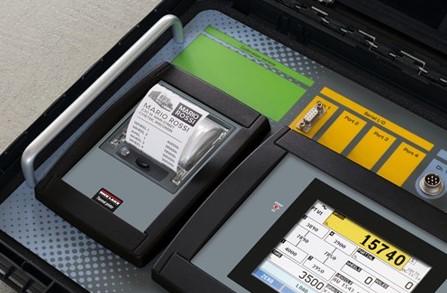

Optional remote indicator with integrated printer in carrying case:

To simplify operation, Load Ranger wheel weigh pads can be paired with and optional touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing from integrated wheel pad sets and ticket printing.

  • Carrying case: 1 ft x 1 ft 6 in x 7 in (325 mm x 460 mm x 170 mm)
  • Backlit graphic display with touchscreen technology
  • Internal battery with 10 hours of battery life
  • Real-time clock
  • Permanent data storage
  • 24-bit A/D converter, up to 2,300 conversions per second
  • One RS-232 serial port
  • Thermal printer
  • ABS transport case

​Wheel weighing software:

  • Multi-scale function mode weighs with up to 14 individual pads (seven sets)
  • Static axle weighing function, up to two channels
  • Calculation of center of gravity
  • Semi-automatic and preset tare
  • Selection of displayed data on LCD touchscreen
  • 1,000 field database
  • Print and display list of last 3,500 vehicles

Options/Accessories:

  • Leveling modules
  • Aluminum ramps
  • NTEP Class IIII (Select sizes and capacities only, consult factory for more information)

Video link

https://www.youtube.com/watch?v=wItMRPbdrXs
